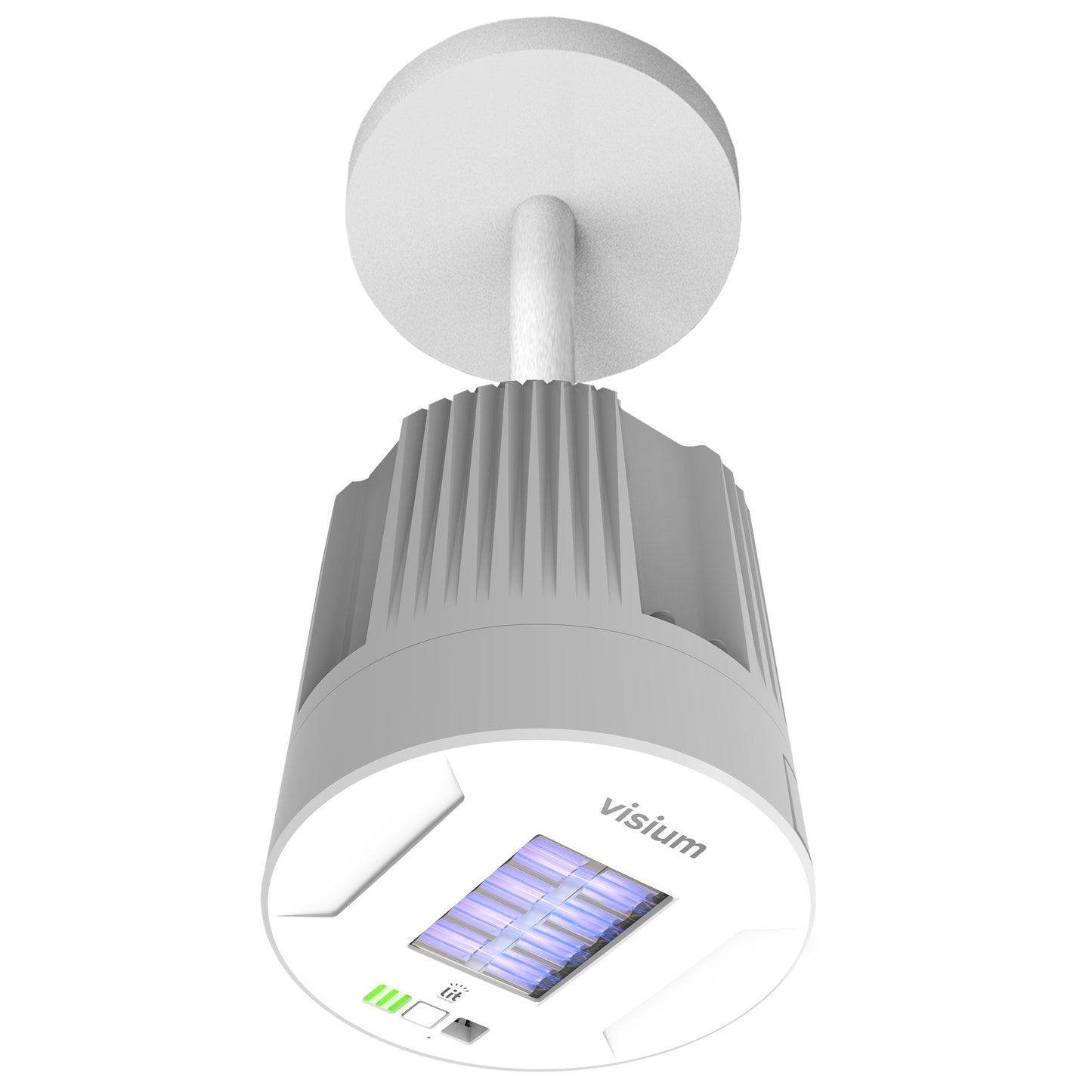

Visium™ Clear Far-UVC Light, Pendant Mount

Product Overview
Visium™ is a groundbreaking innovation, being the first UL Certified continuous air and surface sanitization device of its kind. Rigorously tested for safety and efficacy, Visium™ offers an unparalleled solution for environments where people work, gather, or simply pass through. Not only does Visium™ keep spaces safe for human occupancy, but it also redefines indoor habitation, transforming buildings into havens of health, safety, and comfort. Equipped with full IoT connectivity, Visium™ integrates seamlessly with the Lit Thinking App via Wi-Fi, allowing for remote monitoring of sanitization and indoor air quality (IAQ) status.

Far-UVC Technology
Visium™ utilizes cutting-edge Far-UVC technology, offering a safer, whole-room alternative to traditional UV-C light. With a peak wavelength of 222nm, the Ushio Care222 light source is designed to ensure effective germicidal action for air and surfaces while maintaining safety for occupied spaces. Over 50 peer-reviewed studies and clinical trials have confirmed the safety of Far-UVC, with the American Conference of Governmental Industrial Hygienists (ACGIH) establishing Threshold Limit Values (TLV) for UVC exposure. Visium™ complies with these TLVs, ensuring safe operation in all recommended settings. The device is also UL certified to UL 8802 for 24/7 operation for occupied spaces.

Applications & Use Cases
Ideal for a wide range of environments, Visium™ is perfect for:

• Healthcare Facilities (hospitals, clinics, laboratories, long-term care)
• Commercial spaces (offices, conference rooms, common areas, restrooms)
• Government (Critical infrastructure, administrative offices, military)
• Educational Institutions (schools, universities)
• Sports (training facilities, locker rooms)

Whether used in high-traffic areas or more private settings, Visium™ ensures continuous sanitization, providing peace of mind and enhanced safety.

Specifications

Far-UVC Source

• Peak Wavelength: 222nm w/ Band-Pass Filter
• Type: Ushio Care222 Kr-Cl Excimer Lamp Module
• Lamp Lifetime: 10,000 Hours
• UVC Irradiance (at 5cm): Clear Optics: 2.5 ± 0.7 mW/cm²
• UVC Emission Angle: Clear Optics: 60°
• Device Coverage: Up to 200 sq. ft.

Electrical

• Input Voltage: 120-277V, 50-60Hz
• Power Consumption: 14W
• Device Control: Lit Thinking App
• Sensors: Motion, IAQ (via Bosch BME688 sensor)
• Connectivity: WiFi Enabled for Lit Thinking App connectivity, Bluetooth for Lit Thinking Connect commissioning app

Mechanical

• Housing: Matte White ABS/Polycarbonate
• Dimensions: Ø6.12in x 5.79in height (Ø156mm x 147mm), 8.55in (217mm) height with junction box
• Weight: 2.4lb (1,089g)
• Mounting Style: Pendant Mount (optional kit available)
• Minimum Mounting Height: Clear Optics: 9ft 4in AFF (Above Finished Floor)
• Serviceability: Yes, Far-UVC Lamp is field replaceable
• Indicator: Multi-Color Configurable LED Indicator

Environment

• Operating Temperature: 0-40°C (32-104°F)
• Suitable for Damp Locations
• Visium™ is recommended for indoor use only

Regulatory Compliance
Visium™ is designed with safety and compliance at the forefront:

• UL Certification: Certified to UL 8802 - Safety standards for Ultraviolet Germicidal Products
• Photobiological Safety: Classified as Risk Exempt (Risk Group 0) under UL8802
• CARB Certification: Certified to meet California ozone emissions limits
• UVC Exposure Compliance: Complies with ACGIH Threshold Limit Values (TLV) for UVC Exposure
• Manufactured at an EPA registered facility

Warranty & Support
Visium™ comes with a 1-Year Limited Warranty, ensuring peace of mind and reliable performance. Our customer support team is available to assist with installation, maintenance, and any other inquiries.

Not Licensed for sale in CO, IN, WY, or HI.

Pricing & Purchase Options
Contact us today to learn more about volume discounts or to discuss other business development opportunities.

Contact Information
Please reach out to our sales team via sales@litthinking.com or call us at (321) 299-0100.
